12.16 MOD PAGE 5 (FX LFO 2)

12. AUDIO TRACK PARAMETERS > 12.16 MOD PAGE 5 (FX LFO 2) · PDF p. 62–64 · OS 1.4.1

正誤FADE polarity is stated in reverse between MOD pages

§12.12 (VOICE LFO 1) says positive FADE values “produce a fade-out, while negative values produce a fade-in”; §12.15 (FX LFO 1) and §12.16 (FX LFO 2) print exactly the opposite polarity for the same control. Only one can be right and the manual never says which, so each parameter record repeats the wording of its own section and flags the conflict — unresolved pending hardware.

判定：AUDIT.md + §12.12

印刷版マニュアルで確認された誤りです。本プロジェクトは矛盾を隠さず記録します——原文を引用する内容と同様、以下の注記は英語のままです。

12.16 MOD PAGE 5 (FX LFO 2) — figure 1 — PDF p. 63

The FX LFO 2 page contains the same parameters as FX LFO page 1, but controls the behavior of FX LFO 2.

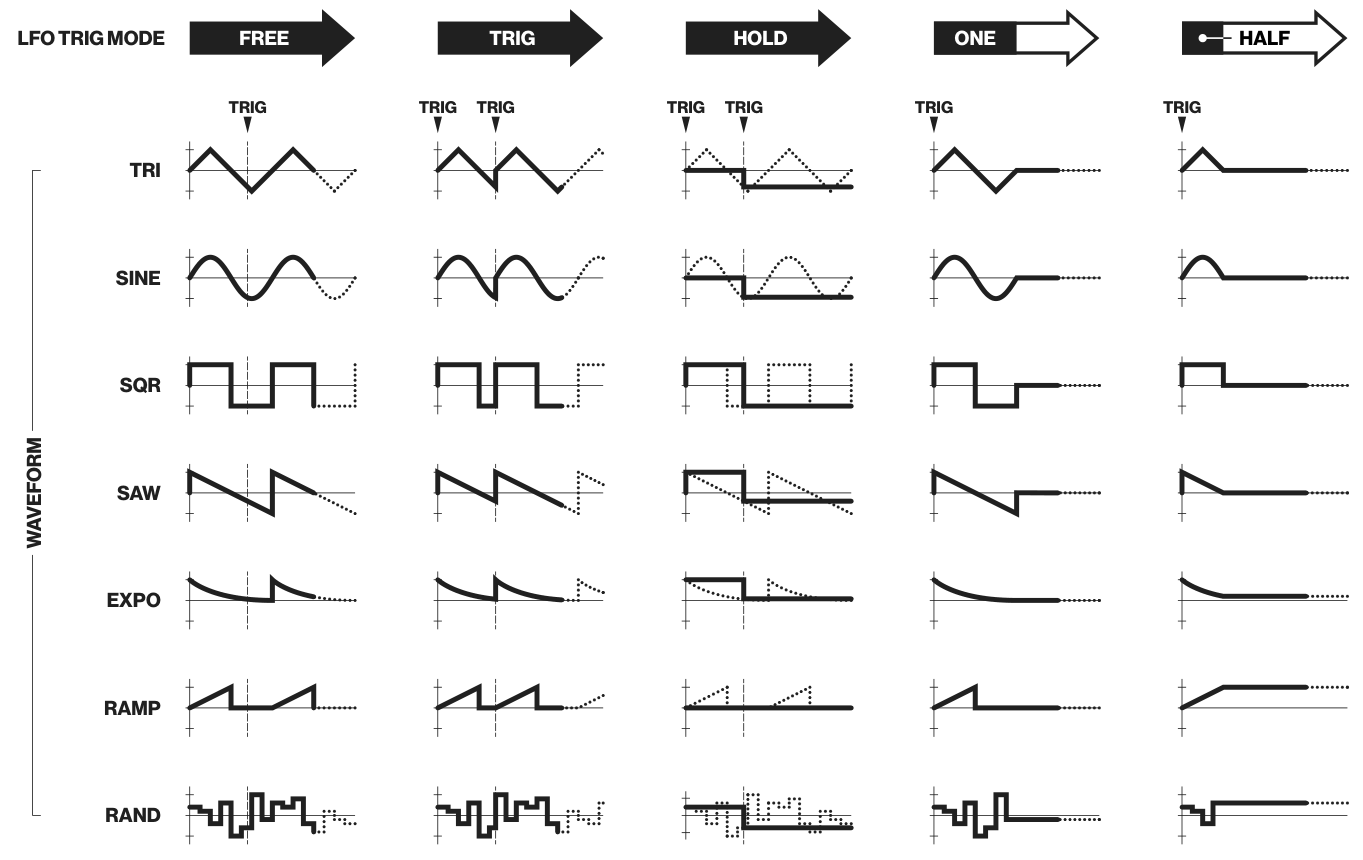

LFO WAVEFORMS AND TRIGMODES

TRIG

HALF

TRIG

ONE

TRIG

HOLD

TRIG

FREE

TRI

SINE

SQR

SAW

EXPO

RAMP

RAND

LFO TRIG MODE

WAVEFORM

LFO SPEED SETTINGS

The table below shows the LFO speed measured in sequencer steps using different combinations of SPD and MULT (set to a BPM value) settings. For example, a value of 8 in the table means that the LFO will do one complete cycle in the time it takes the sequencer to advance eight steps.

MULT

2048

1024

1/2

1/4

1/2

1/4

1/8

1/2

1/4

1/8

1/16

1/2

1/4

1/8

1/16

1/32

1/2

1/4

1/8

1/16

1/32

1/64
