16.1 DIGITAKT II WITH A MONOPHONIC BASS MACHINE

16. SETUP EXAMPLES > 16.1 DIGITAKT II WITH A MONOPHONIC BASS MACHINE · PDF p. 86 · OS 1.17

16.1 DIGITAKT II WITH A MONOPHONIC BASS MACHINE — figure 1
PDF p. 86
16.1 DIGITAKT II WITH A MONOPHONIC BASS MACHINE — figure 2
PDF p. 86

The DIN sync capabilities of the Digitakt II allows you to use gear from yesteryear.

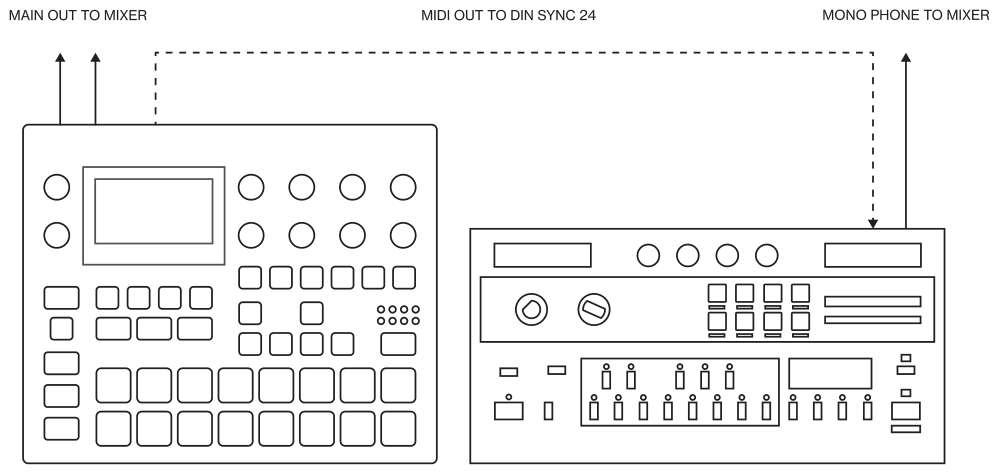

In this example, a legacy monophonic bass machine is used alongside the Digitakt II. The Digitakt II can stop, start and control the tempo of the bass machine.

  1. Prepare a bassline pattern on the bass machine.
  2. Connect the output of the bass machine to the mixer using a Mono jack 6.3 mm male cable.
  3. Connect the Digitakt II audio outputs to the mixer using 2 x Mono or Stereo jack 6.3 mm male cables.
  4. Use a DIN connector cable to connect the MIDI OUT of the Digitakt II to the SYNC IN of the bass machine.

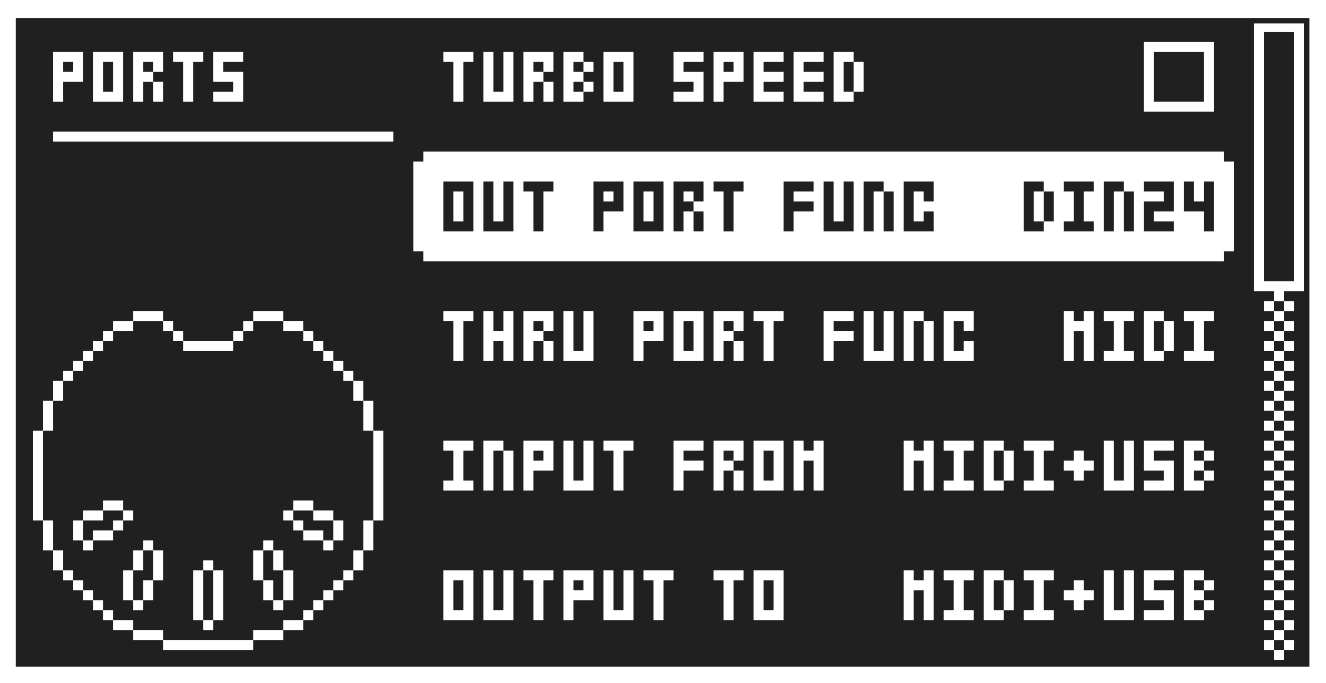

  5. On the Digitakt II, press [SETTINGS], and then navigate to MIDI CONFIG > PORT CONFIG and set OUT PORT CONFIG to DIN24.
  6. Press [PLAY] on the Digitakt II.
