12.6 AMP PAGE 1

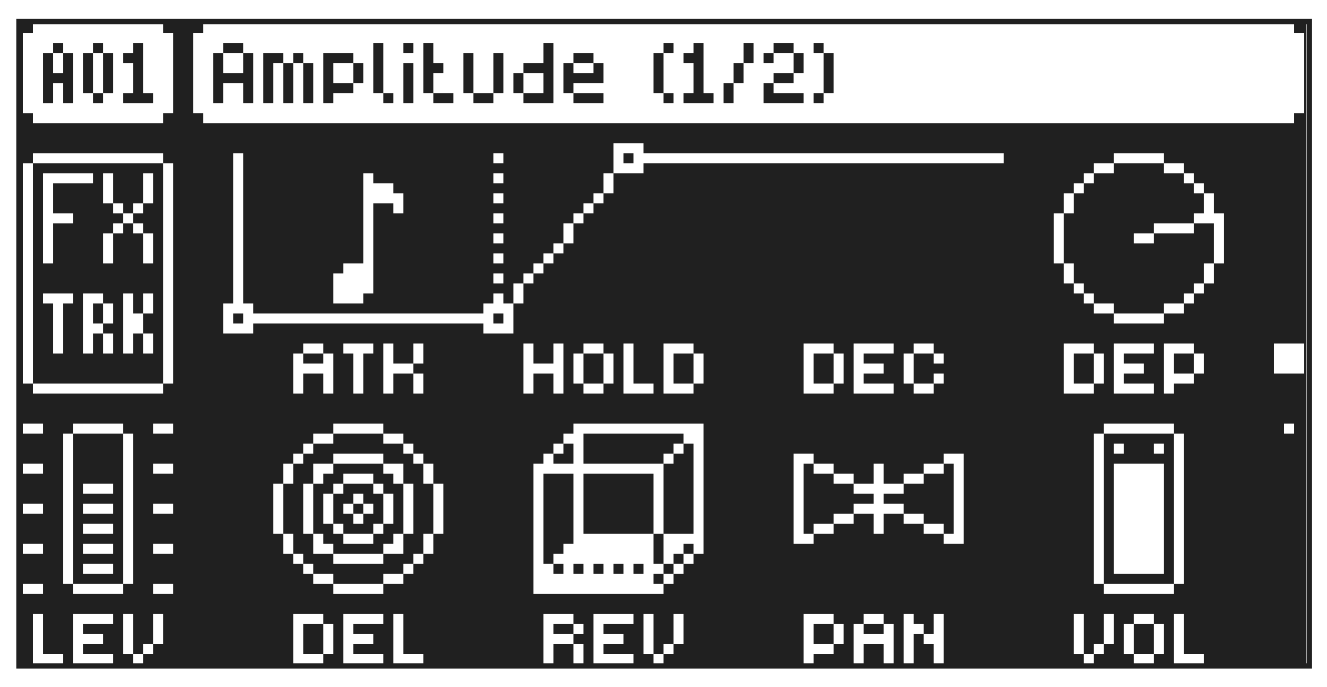

The AMP page 1 controls parameters for the inverted amplitude envelope, effects sends, panning and volume.

Press [AMP] to access this parameter page.

12.6.1 ATK

Attack Time sets the length of the attack phase of the amp envelope.

12.6.2 HOLD

Hold Time sets the length of the hold phase of the amp envelope. Fixed Hold time values (0–126) specify the length of the hold phase, and the envelope ignores Note Off events such as Trig Length, releasing a [TRIG] key or a key on an external controller. Setting HOLD to NOTE means the hold phase will be determined by Note On and Note Off events. If you set HOLD to NOTE and use an external keyboard to trigger the envelope, then the sound will be sustained (if DEP is set to less than 127) for as long as you press a key on the keyboard.

12.6.3 DEC

Decay Time sets the length of the decay phase of the amp envelope.

12.6.4 SUS

Sustain Level sets the sustain level of the amp envelope. This parameter is only available if MODE on AMP Page 2 is set to ADSR.

12.6.5 REL

Release Time sets the length of the release phase of the amp envelope. This parameter is only available if MODE on AMP Page 2 is set to ADSR.

12.6.6 DEP

Depth sets the amount of modulation from the amplitude envelope. This parameter is only available if MODE on AMP Page 2 is set to AHD.

12.6.7 DEL

Delay Send sets the amount of the sound from the FX track that is sent through to the Delay effect. For more information, please see “13.2 DELAY” on page 68.

12.6.8 REV

Reverb Send sets the amount of the sound from the FX track that is sent through to the Reverb effect. For more information, please see “13.3 REVERB” on page 69.

12.6.9 PAN

Pan positions the sound in the stereo field. The knob function is bipolar with 0 being the balanced midpoint, L64 sends all sound to the left channel and R63 sends all sound to the right.

12.6.10 VOL

Volume sets the volume of the FX track amplifier. Unlike the track LEVEL, this parameter can be parameter locked. To prevent an audio feedback loop, the DEL and REV parameters are disabled when the delay and reverb respectively are routed in to the Analog FX. For more information, please see “5.4.1 ANALOG FX BLOCK ROUTING” on page 18.

Inverted amplitude envelope with a fixed HOLD time.

TIME

AMPLITUDE

Note On

Attack Decay Hold Note Off

Attack Decay Hold Note On

Note Off

Attack Decay Hold Note On Note Off

Inverted amplitude envelope with HOLD set to NOTE.

TIME

AMPLITUDE

Note On

Attack Decay Hold Note Off Attack Decay Hold Note On Note Off

Attack/ Hold Decay Note On

Note Off
