12.2 DELAY

(SEND FX PAGE 1)

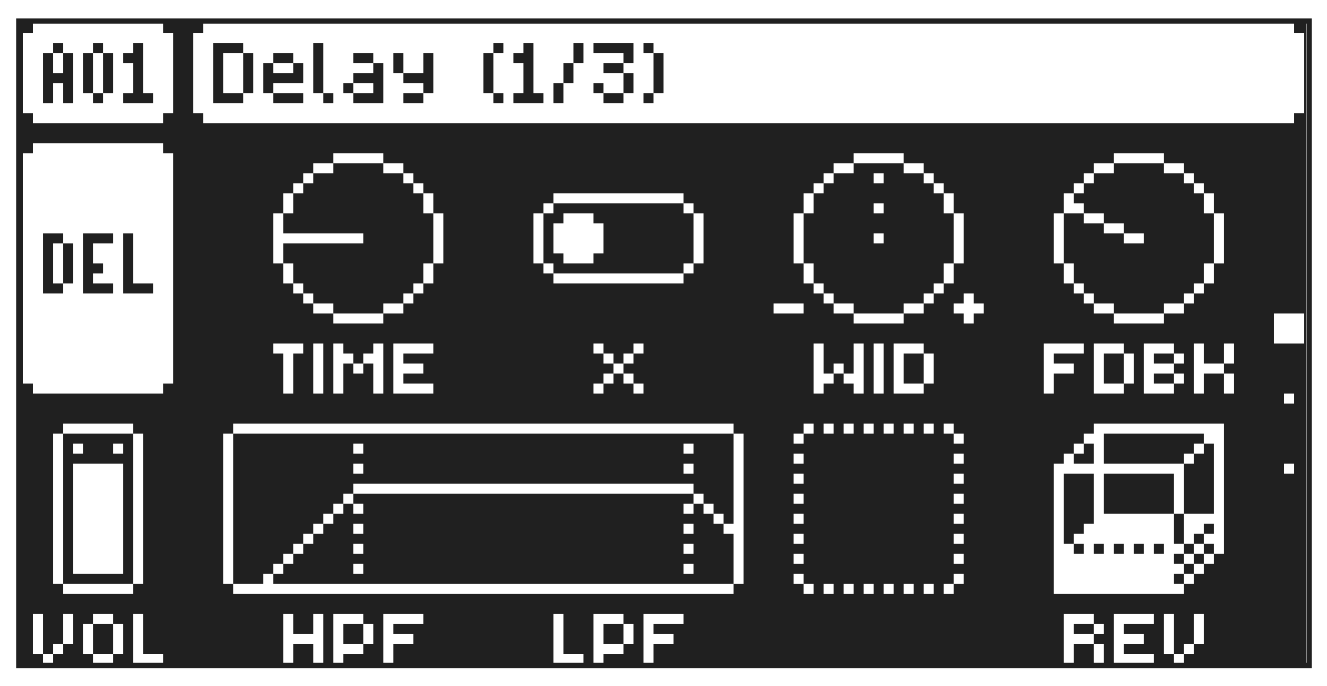

The Delay send effect takes the input signal, delays it in time and then rejoins it with the original signal.

TIME

Delay Time sets the delay time. It is relative to the current BPM and is measured in 128th notes.

TIME setting

Divide ratio

1/128

1/64

2.67

1/48 (1/32T)

1/64.

1/32

5.33

1/24 (1/16T)

1/32.

1/16

10.67

1/12 (1/8T)

1/16.

1/8

21.33

1/6 (1/4T)

1/8.

1/4

42.67

1/3 (1/2T)

1/4.

1/2

1/2.

X

Ping-pong sets the delay signal to alternate across the stereo field. There are two settings:

• OFF lets you manually set the position of the delay signal in the stereo field. Use the WID parameter to change the stereo field position.
• ON makes the delay signal alternate between left and right pan positions. The WID parameter controls the amount of panning.

WID

Stereo Width sets the delay signal pan width across the stereo field. The knob is bipolar.

FDBK

Feedback Gain sets the amount of delay output signal to feed back into the input of the delay. With higher parameter settings, infinite and/or swelling delays are possible. Please be aware that high feedback can lead to a very loud signal.

VOL

Delay Volume sets the volume of the Delay output signal. Use LEVEL/DATA to set this parameter.

HPF

HPF sets the cutoff frequency of the delay highpass filter.

LPF

LPF sets the cutoff frequency of the delay lowpass filter.

REV

Reverb Send sets the amount of Delay output signal to be sent to the Reverb.
