A.3 FLTR MACHINES

The FLTR machines are a collection of different filters and EQ.

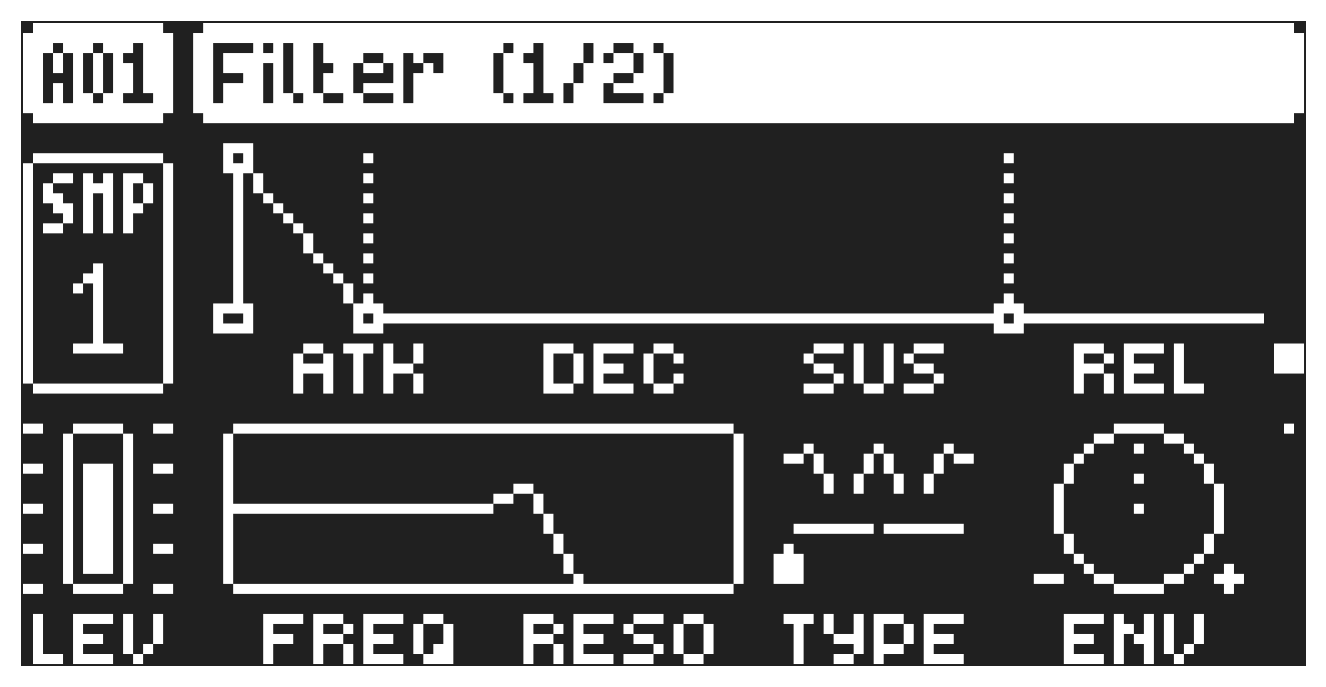

A.3.1 MULTI-MODE

This filter lets you morph from a Lowpass to Bandpass to Highpass filter ATK

Attack Time sets the length of the attack phase of the filter envelope.

DEC

Decay Time sets the length of the decay phase of the filter envelope.

SUS

Sustain Level sets the sustain level of the filter envelope.

REL

Release Time sets the length of the release phase of the filter envelope.

FREQ

Frequency sets the cutoff frequency of the multi-mode filter and the center frequency of the EQ.

RESO/GAIN

Resonance sets the resonance behavior of the filter. Resonance introduces a peak in the spectrum at the cutoff frequency. Gain sets the amount of boost/cut around the center frequency of the EQ.

TYPE

Type morphs the multimode filter from Lowpass to Bandpass to Highpass ENV

Env. Depth sets the amount of cutoff frequency modulation from the filter envelope. The knob is bipolar, both negative and positive modulation depths are available.

TIME

AMPLITUDE

Note On

Attack Decay Sustain Note Off

Release Env.

Delay

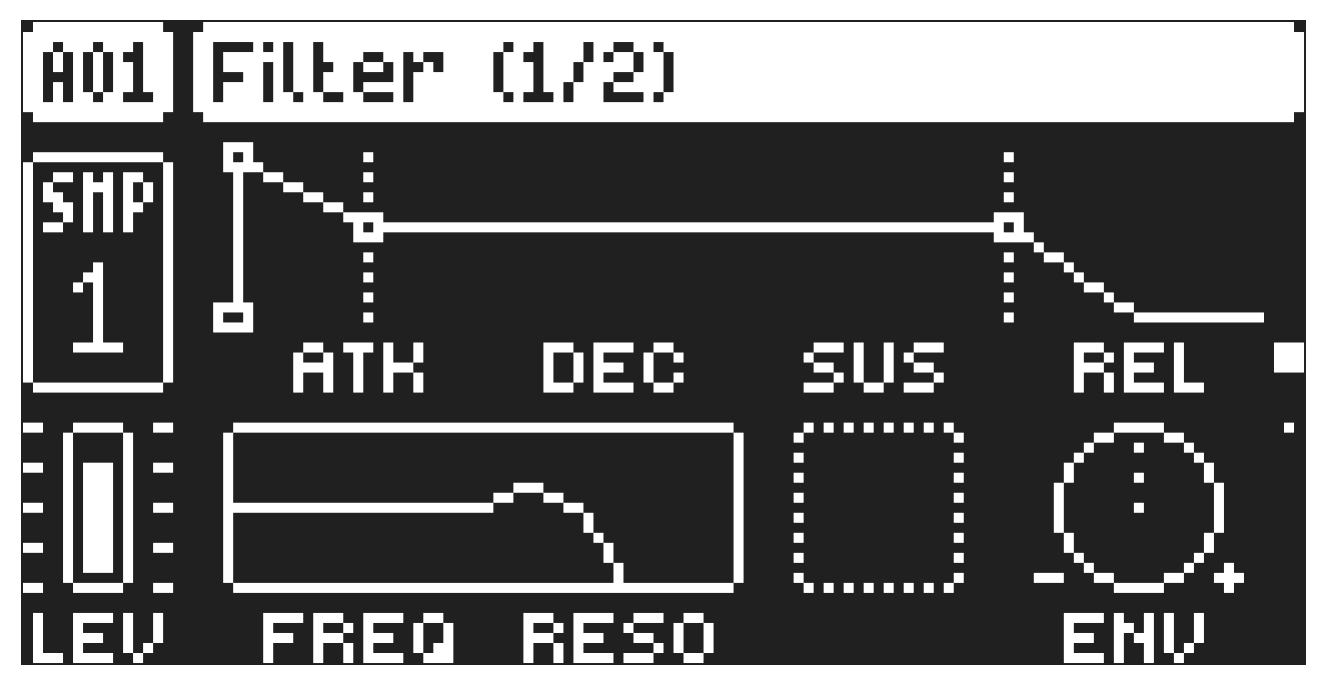

A.3.2 LOWPASS 4

This is a 4-pole low-pass filter with a 24 dB/octave slope.

ATK

Attack Time sets the length of the attack phase of the filter envelope.

DEC

Decay Time sets the length of the decay phase of the filter envelope.

SUS

Sustain Level sets the sustain level of the filter envelope.

REL

Release Time sets the length of the release phase of the filter envelope.

FREQ

Frequency sets the cutoff frequency of the filter.

RESO

Resonance sets the resonance behavior of the filter. Resonance introduces a peak in the spectrum at the cutoff frequency.

ENV

Env. Depth sets the amount of cutoff frequency modulation from the filter envelope. The knob is bipolar, both negative and positive modulation depths are available.

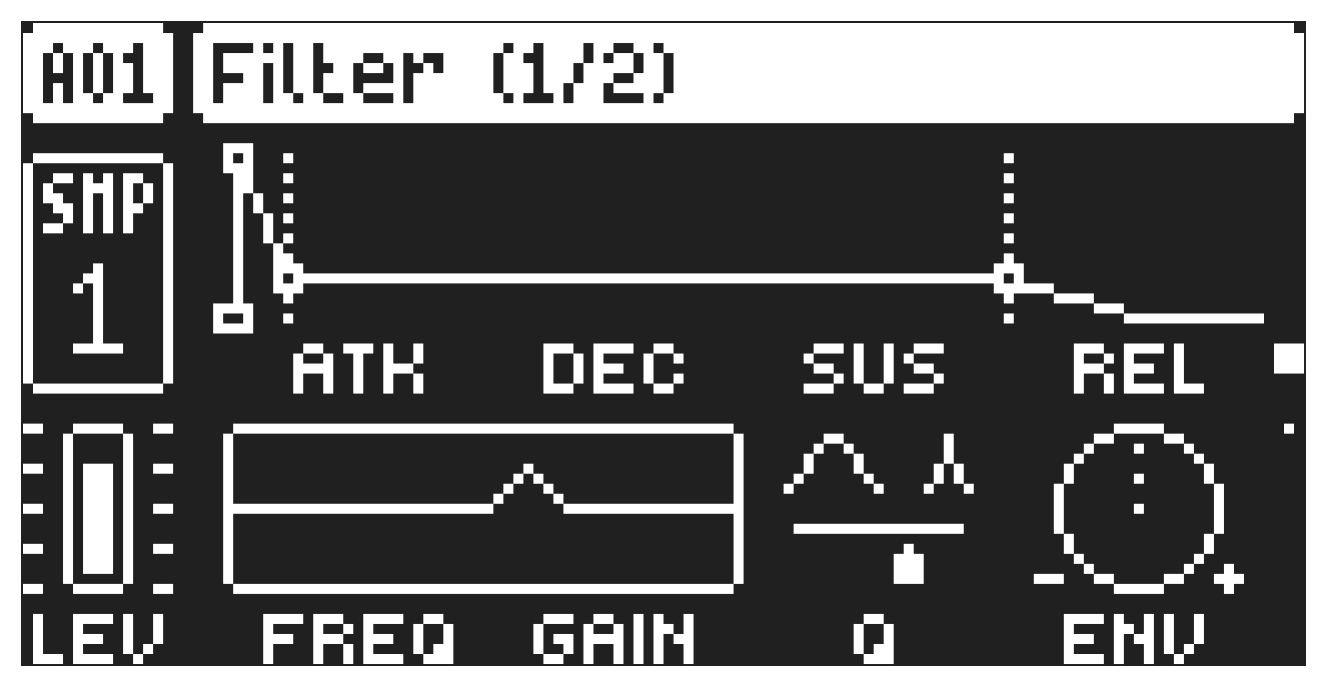

A.3.3 EQ

This machine is a parametric Equalizer.

ATK

Attack Time sets the length of the attack phase of the EQ envelope.

DEC

Decay Time sets the length of the decay phase of the EQ envelope.

SUS

Sustain Level sets the sustain level of the EQ envelope.

REL

Release Time sets the length of the release phase of the EQ envelope.

FREQ

Frequency sets the center frequency of the EQ.

GAIN

Gain sets the amount of boost/cut around the center frequency of the EQ.

Q

Q lets you select the bandwidth of the frequency range that the EQ affects. The higher the Q value, the narrower the bandwidth. A broad bandwidth boosts or cuts a larger band of frequencies than a narrow.

ENV

Env. Depth sets the amount of cutoff frequency modulation from the filter envelope. The knob is bipolar, both negative and positive modulation depths are available. The parametric EQ is used to boost desired frequencies or to remove unwanted frequencies of the sound.

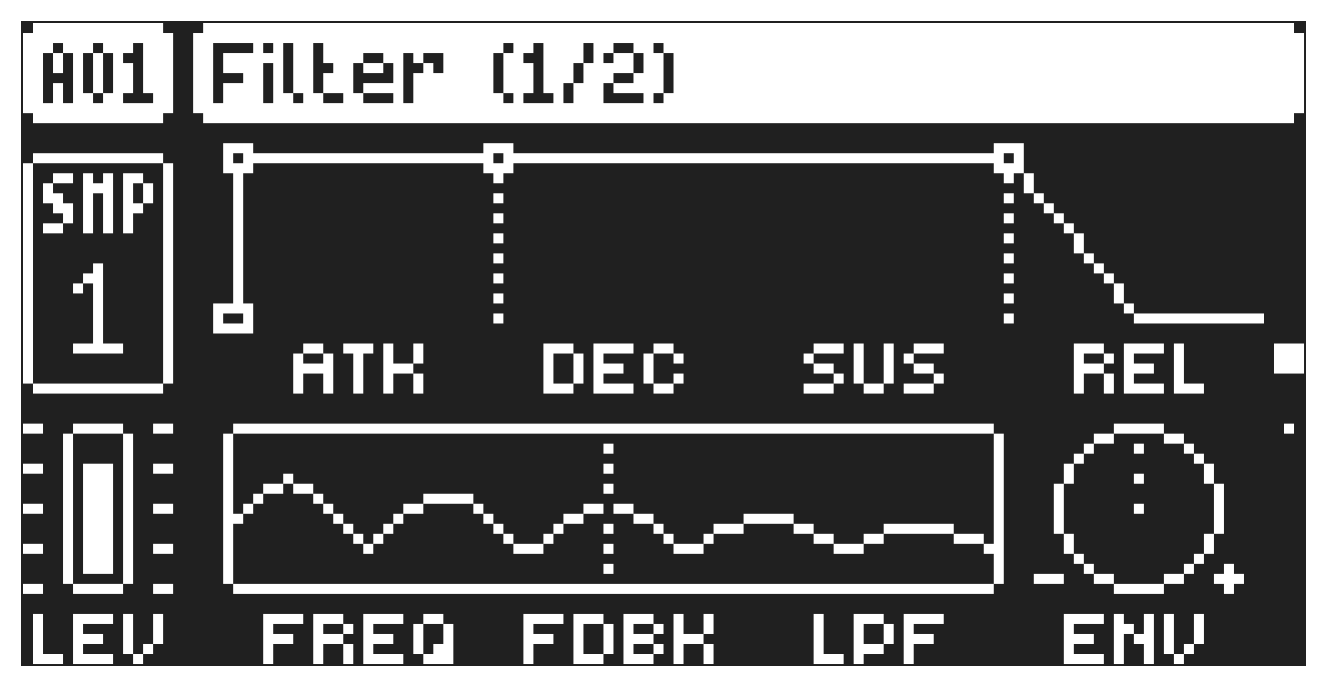

A.3.4 COMB-

The comb filter introduces metallic sounding, pitch tuned, resonant overtones. The comb- filter has negative feedback and produces a more hollow, tube-like sound.

ATK

Attack Time sets the length of the attack phase of the filter envelope.

DEC

Decay Time sets the length of the decay phase of the filter envelope.

SUS

Sustain Level sets the sustain level of the filter envelope.

REL

Release Time sets the length of the release phase of the filter envelope.

FREQ

Frequency sets the resonant frequencies of the comb filter.

FDBK

Feedback sets the gain of the feedback signal.

LPF

Low Pass Filter sets the cutoff frequency of the low pass filter that is implemented in the feedback signal.

ENV

Env. Depth sets the amount of cutoff frequency modulation from the filter envelope. The knob is bipolar, both negative and positive modulation depths are available.

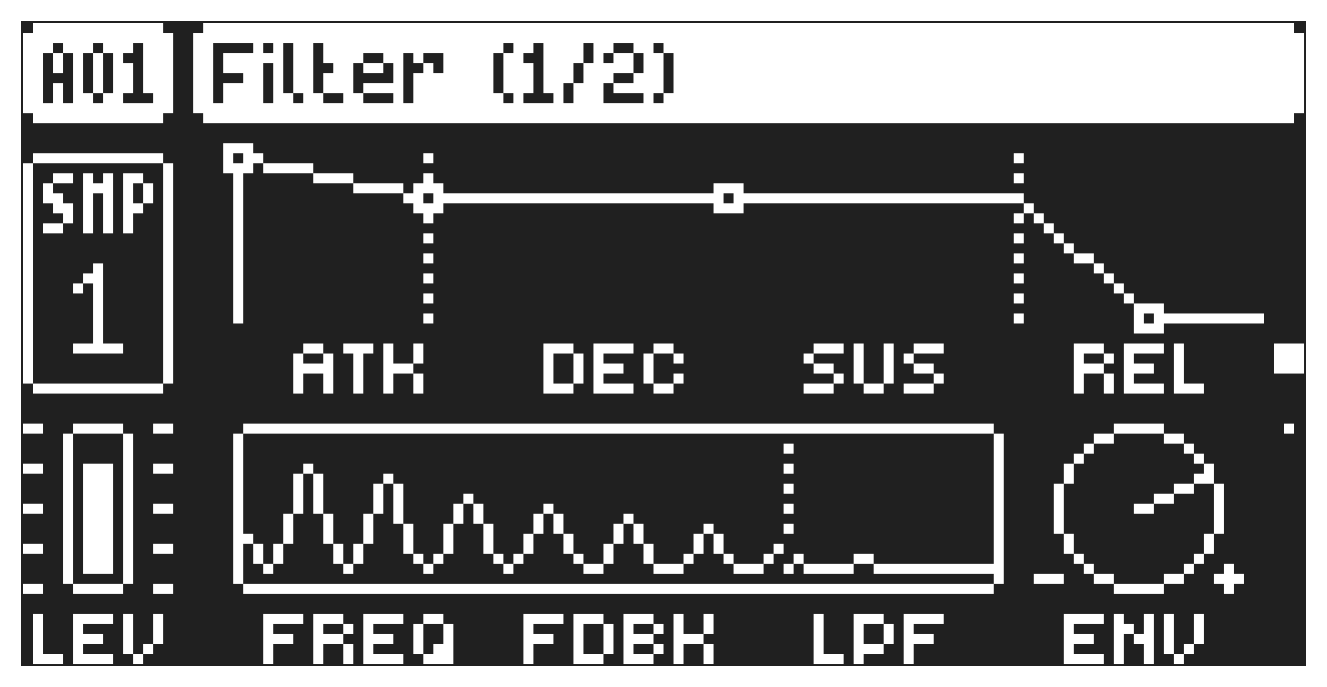

A.3.5 COMB+

The comb filter introduces metallic sounding, pitch tuned, resonant overtones. The comb+ filter has positive feedback and produces a more string-like sound.

ATK

Attack Time sets the length of the attack phase of the filter envelope.

DEC

Decay Time sets the length of the decay phase of the filter envelope.

SUS

Sustain Level sets the sustain level of the filter envelope.

REL

Release Time sets the length of the release phase of the filter envelope.

FREQ

Frequency sets the resonant frequencies of the comb filter.

FDBK

Feedback sets the gain of the feedback signal. Please beware that setting FDBK to a high value can create a very loud sound.

LPF

Low Pass Filter sets the cutoff frequency of the low pass filter in the feedback signal.

ENV

Env. Depth sets the amount of cutoff frequency modulation from the filter envelope. The knob is bipolar, both negative and positive modulation depths are available.

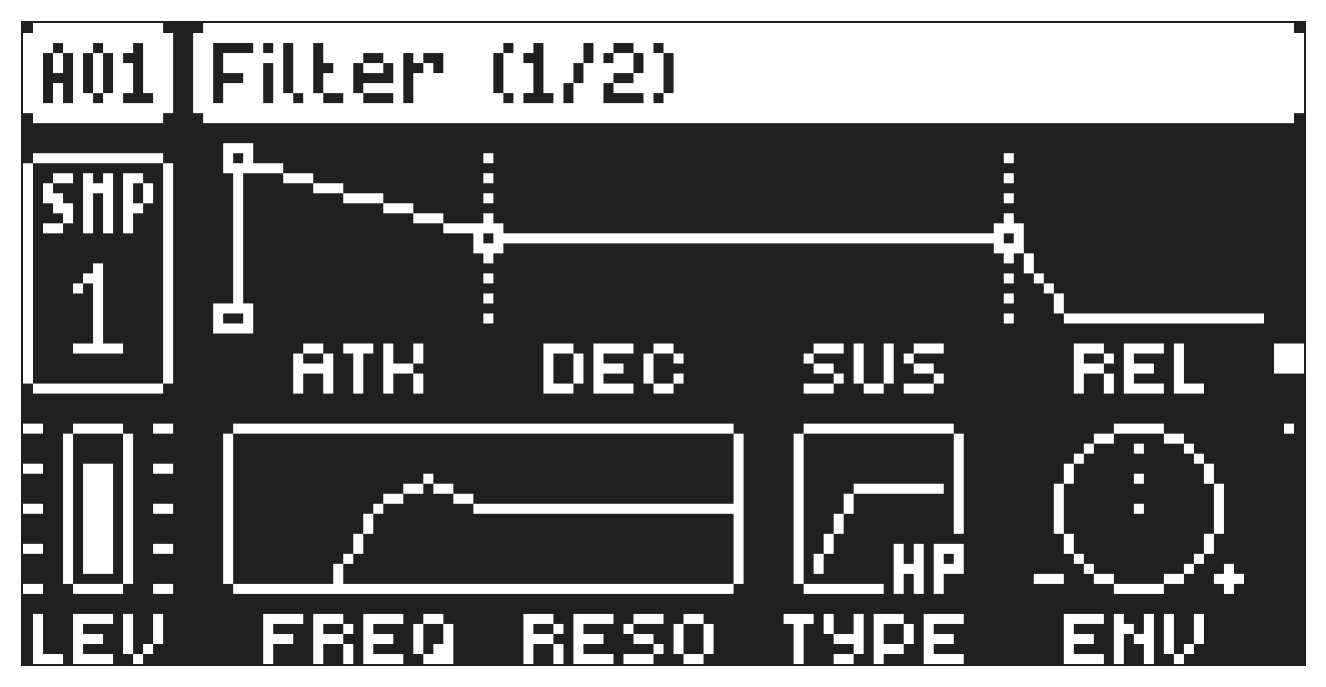

A.3.5 LEGACY

The legacy filter is inspired by the filter from Digitakt I and is a filter that is switchable between Lowpass and Highpass.

ATK

Attack Time sets the length of the attack phase of the filter envelope.

DEC

Decay Time sets the length of the decay phase of the filter envelope.

SUS

Sustain Level sets the sustain level of the filter envelope.

REL

Release Time sets the length of the release phase of the filter envelope.

FREQ

Frequency sets the cutoff frequency of the filter.

RESO

Resonance sets the resonance behavior of the filter. Resonance introduces a peak in the spectrum at the cutoff frequency.

TYPE

Filter Type lets you select between a Lowpass or Highpass filter, both a 2-pole, 12 dB/octave slope.

ENV

Env. Depth sets the amount of cutoff frequency modulation from the filter envelope. The knob is bipolar, both negative and positive modulation depths are available.

APPENDIX B: MIDI

APPENDIX B: MIDI

This appendix lists the CC and NRPN specification for the Digitakt II.

B.1 TRACK PARAMETERS

TRACK

Parameter CC MSB

CC LSB

NRPN MSB

NRPN LSB

Mute Track level

B.2 TRIG PARAMETERS

TRIG PARAMETERS

Parameter CC MSB

CC LSB

NRPN MSB

NRPN LSB

Note Velocity Length Filter Trig

LFO Trig

Portamento Time

Portamento On/Off

B.3 SOURCE PARAMETERS

SOURCE

Parameter CC MSB

CC LSB

NRPN MSB

NRPN LSB

Tune Play Mode

Sample Bank Select

Sample Slot Select

Data entry knob E (machine dependent)

Data entry knob F (machine dependent)

Data entry knob G (machine dependent)

Sample Level

B.4 FILTER PARAMETERS

FILTER

Parameter CC MSB

CC LSB

NRPN MSB

NRPN LSB

Filter Frequency

Data entry knob F (machine dependent)

Data entry knob G (machine dependent)

Env. Depth

Attack Time

Decay Time

Sustain Level

Release Time

Env. Delay

Key Tracking

Base
