15.3 CONTROLLING A SYNTHESIZER USING THE MIDI TRACKS

15. SETUP EXAMPLES > 15.3 CONTROLLING A SYNTHESIZER USING THE MIDI TRACKS · PDF p. 82–84 · OS 1.12

15.3 CONTROLLING A SYNTHESIZER USING THE MIDI TRACKS — figure 1
PDF p. 82
15.3 CONTROLLING A SYNTHESIZER USING THE MIDI TRACKS — figure 2
PDF p. 83

Digitone II has extensive capabilities to use its sequencer’s MIDI tracks to control other MIDI-equipped synthesizers.

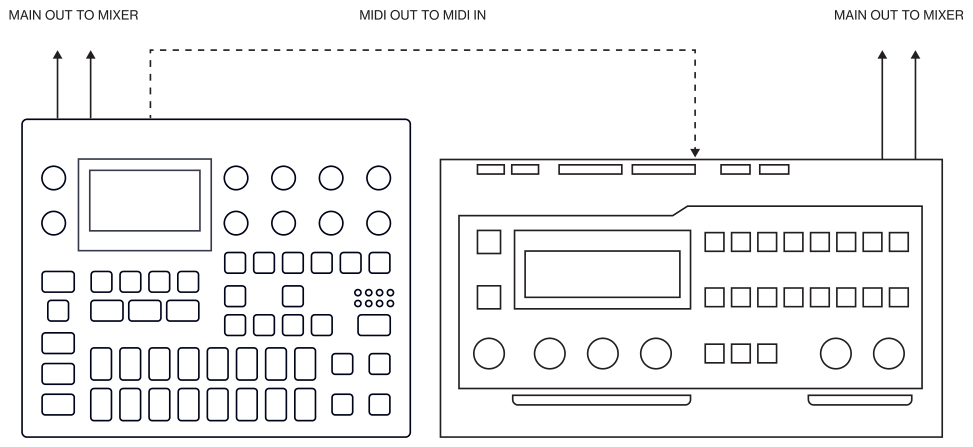

  1. Use a standard MIDI cable to connect the Digitone II MIDI OUT jack with the synthesizer’s MIDI IN jack.

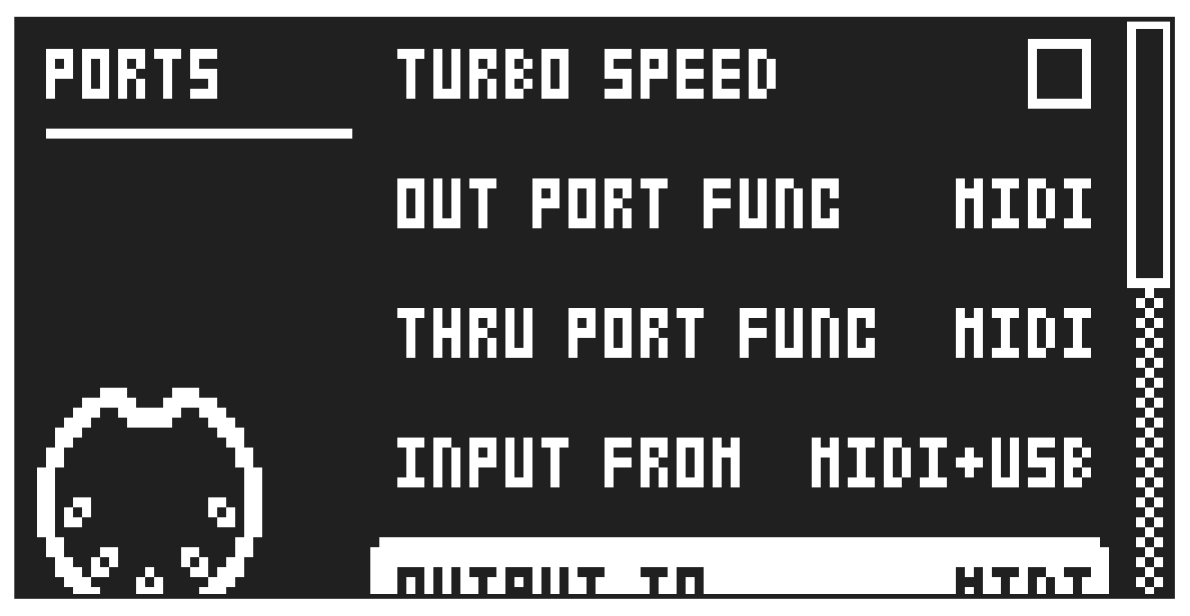

  2. On the Digitone II, press [SETTINGS], and then navigate to MIDI CONFIG > PORT CONFIG and set OUT PORT FUNC to MIDI.
  3. In the same menu set OUTPUT to MIDI.
  4. On the main screen, press [TRK] + [TRIG 1-16] to select a track that uses a MIDI SYN machine.
  5. Press [SYN] and use the CHAN parameter to select a MIDI channel that the track will output its data to.
  6. Make sure to set your synthesizer to receive MIDI input in a way that corresponds to the settings you made in the Digitone II.

You are now ready to use the Digitone II sequencer to control your synthesizer. For more information about using the Digitone II sequencer, please see “10. THE SEQUENCER” on page 41.
